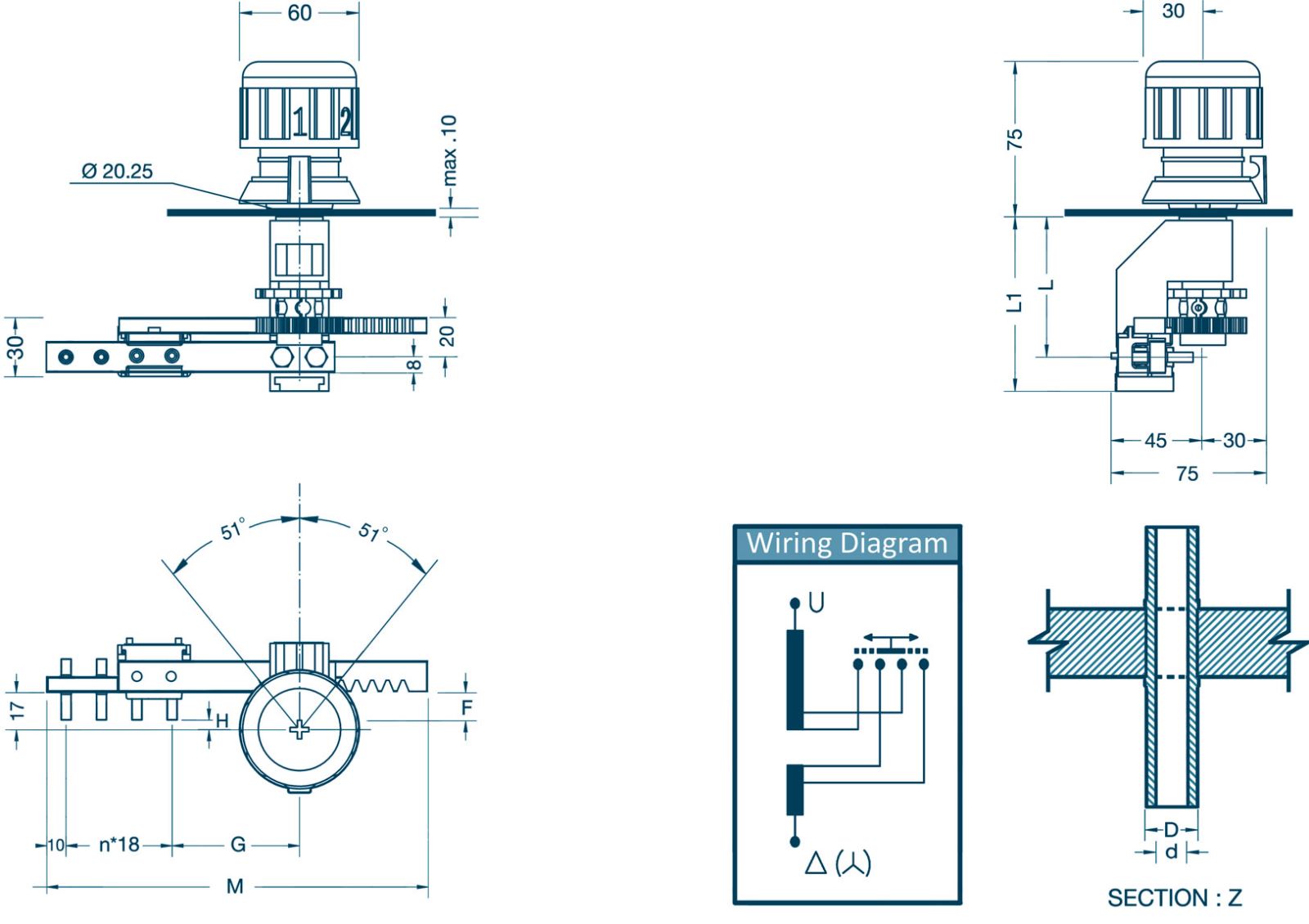

Single Phase De-Energized Tap Changer

No.	System Voltage kV	Amp.	Unit No.	Number Of Positions	D	d	F	H	I	K	L	M	L1	G	n*18
1	24	10	RS2A307	3	4	2.1	12	5	-	-	70	183	83	65	3*18=54
2	24	10	RS2A507	5	4	2.1	12	5	-	-	70	255	83	65	5*18=90
3	24	10	RS2A310	3	4	2.1	12	5	-	-	100	183	113	65	3*18=54
4	24	10	RS2A510	5	4	2.1	12	5	-	-	100	255	113	65	5*18=90
5	24	30	RS2B307	3	5	3.1	12	5	-	-	70	183	83	65	3*18=54
6	24	30	RS2B507	5	5	3.1	12	5	-	-	70	255	83	65	5*18=90
7	24	30	RS2B310	3	5	3.1	12	5	-	-	100	183	113	65	3*18=54
8	24	30	RS2B510	5	5	3.1	12	5	-	-	100	255	113	65	5*18=90
9	24	63	RS2C307	3	7	5.1	12	5	-	-	70	183	83	65	3*18=54
10	24	63	RS2C507	5	7	5.1	12	5	-	-	70	255	83	65	5*18=90
11	24	63	RS2C310	3	7	5.1	12	5	-	-	100	183	113	65	3*18=54
12	24	63	RS2C510	5	7	5.1	12	5	-	-	100	255	113	65	5*18=90
13	24	10	RS3A307	3	4	2.1	12	5	-	-	70	208	83	90	3*18=54
14	36	10	RS3A507	5	4	2.1	12	5	-	-	70	280	83	90	5*18=90
15	36	10	RS3A310	3	4	2.1	12	5	-	-	100	208	113	90	3*18=54
16	36	10	RS3A510	5	4	2.1	12	5	-	-	100	280	113	90	5*18=90
17	36	30	RS3B307	3	5	3.1	12	5	-	-	70	208	83	90	3*18=54
18	36	30	RS3B507	5	5	3.1	12	5	-	-	70	280	83	90	5*18=90
19	36	30	RS3B310	3	5	3.1	12	5	-	-	100	208	113	90	3*18=54
20	36	30	RS3B510	5	5	3.1	12	5	-	-	100	280	113	90	5*18=90
21	36	63	RS3C307	3	7	5.1	12	5	-	-	70	208	83	90	3*18=54
22	36	63	RS3C507	5	7	5.1	12	5	-	-	70	280	83	90	5*18=90
23	36	63	RS3C310	3	7	5.1	12	5	-	-	100	208	113	90	3*18=54
24	36	63	RS3C510	5	7	5.1	12	5	-	-	100	280	113	90	5*18=90
