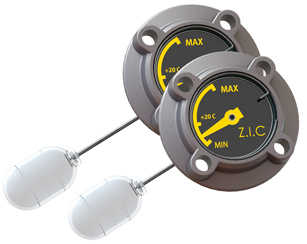

- Oil Level Indicators are used in transformers of powers less than 5000 KVA for the purpose of monitoring their oil level .
- Indicator part has no contact with the oil.
- Oil level indicators do not allow oil leakage at temperatures of 110°C, 0,5 bar effective pressure and vacuum.

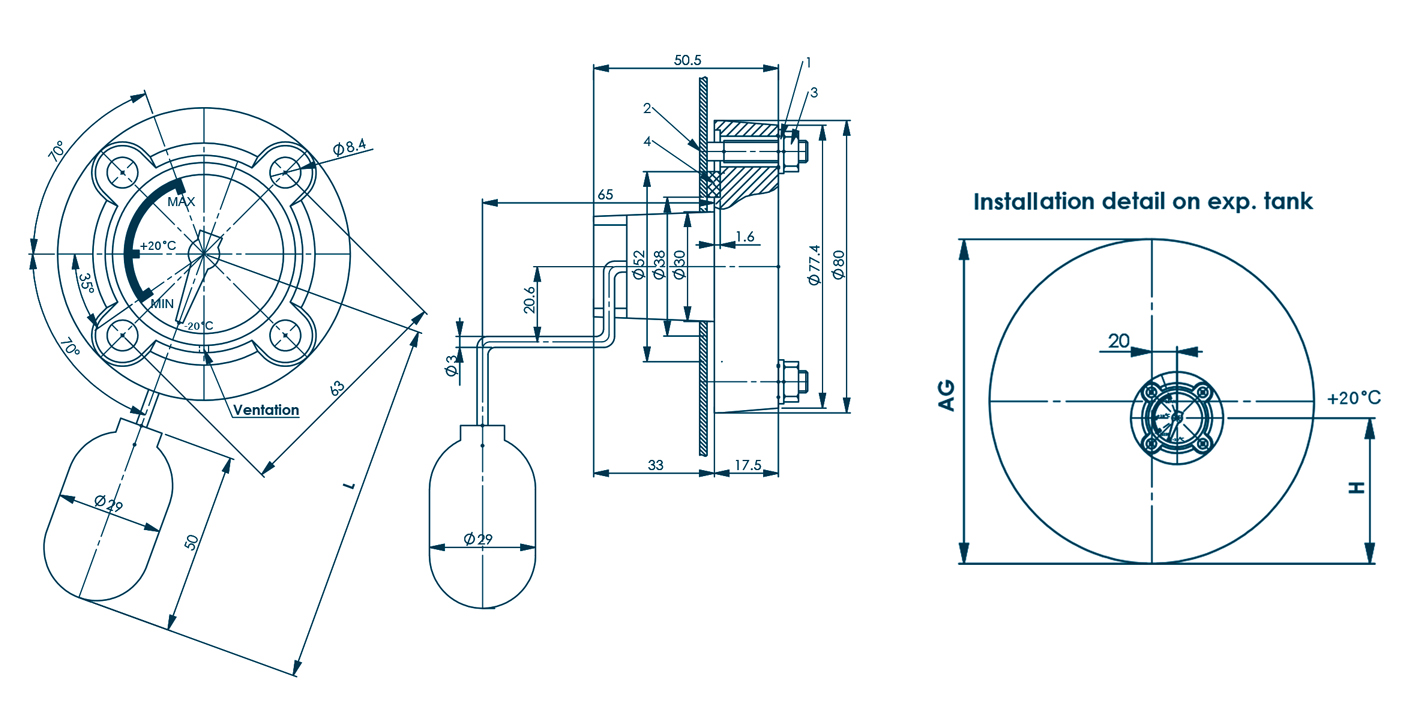

|1||Washer 6.4 DIN 125 St-A4H ( zinc coated )|
|2||Bolt MP-M6x30 A4H (GD024)|
|3||Hex.Nut M6 DIN934 St-A4H(zinc coated )|
|4||Flat gasket (GD140)|
|Φ AG||Floating length L||Instalation height H|
